Price of glucose syrup processing plant

Price of glucose syrup processing plant

Many clients ask us price of glucose syrup processing plant, now let’s introduce our processing flow chart for you.

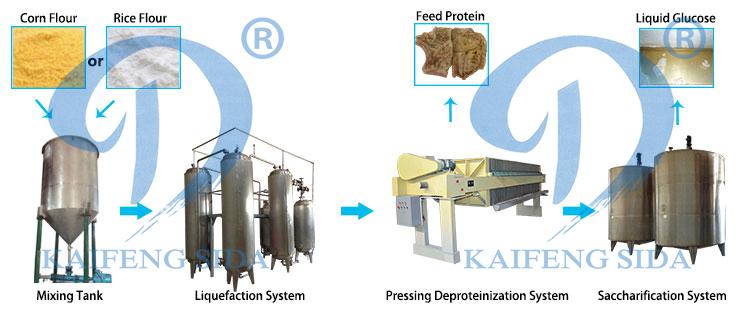

1-a). The function of mixing tank is to get right density of the slurry, the water is very important at this time. Normally we use warm water, and add ɑ amylase and PH reagent with mixing.

1-b). For liquefaction system,the temperature is very important. If temperature is too high the flour will be cooked. Firstly the materials go into the first liquid ejector. Then goes into pressure tank, and flow into four laminar flow tanks, finally go out from maintaining tank. This tank connected with another liquid ejector. Then the materials go into transfer tank.

1-c). Press filter is the parts to take all the protein out, we use air compressor to increase the pressure. When we finished the pressing, we can use water cannon to clean these machine.

1-d) After the pressing, the materials go into saccharification tank. But before entering, we will use a heat-exchanger to make the temperature become low. Then we put glucose enzymes and PH reagent into these tanks. And after their chemical reaction, we will increase the temperature to kill glucose enzymes.

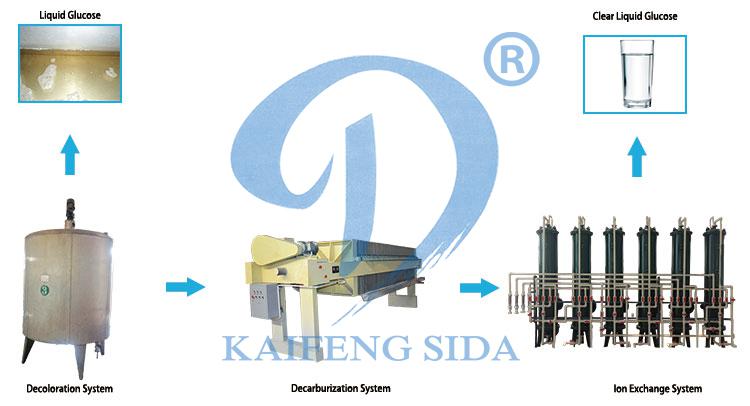

2-a). The decoloration main function is to attract color, this step will be effect to the final product level. This parts the temperature is very important too. The press machines are used to remove the activated carbon.

2-b). For inox exchange system, we can use a heat-exchanger to make the temperature become low.

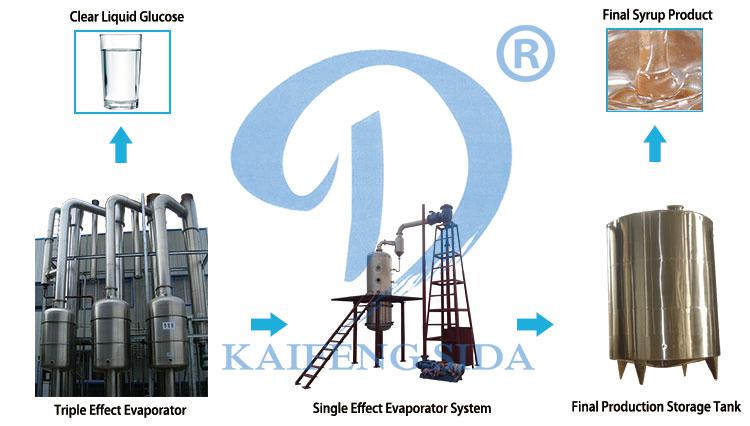

3-a). Triple effect evaporator mainly used to concentrate the glucose density;

3-b). This is the last step, from this part customer can got final product, how much density you need, what color you need;

3-c). Final storage tank make sure all the glucose syrup can be store properly, because the glucose will be thick on the pipe when the density is high like 84%, the glucose syrup can not pump out if the storage not properly. So the tank have constant temperature to make sure it can pump out in anytime.

So if you want to know the price of glucose syrup processing plant, just tell us the capacity you need. We will give you a good answer. Welcome to Kaifeng Sida Agricultural Products Equipment Co.,Ltd.
